| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 35 working days |
| Payment Method: | T/T |
| Supply Capacity: | 3 sets per month |

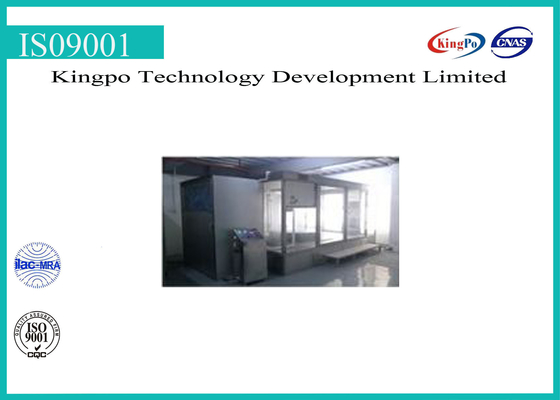

Military Standard Raining Tester
Technical Parameter
meet standard procedures of IP GJB150.8A-2009
1, interior dimension(mm):2500×1500×2000(D×W×H)(stainless steel supplied by toughened glass
exterior dimension(mm)3800X 1600X2700(D×W×H)
2, speed(rpm):1 ~3 adjustable
3, water dropping box(mm): (1)1000X1000MM pitch-row :20X20Mm,bore diameter:0.6Mm
4., distance between water dropping box and specimen:1000MM
5, diameter of water dropping hole(mm):φ0 .4 ( dropping water diameter0.5-4.5MM)
6, clearance of pitchrow(mm):20 MM
7, time:1-999,999min(adjustable)
8, air speed:18m/s(water drop at 45°by blowing);don’t display speed
9, fan specification:3.5KW,380V (the converter adjust speed);2 sets.
10, sample temp.:generally 10°higher than normal temp.water
11, framework in square tube;closure plate using color steel plate
12, sample holder(for placing sample)with adjustable speed square:1000X1000MM
13, precipitation rate:1.7mm/min
14, control system:Independent R&D Teelong control system
|
|
