| MOQ: | 1 |
| Price: | To be quoted |
| Standard Packaging: | safety carton pack or plywood box |
| Delivery Period: | 25 working days |
| Payment Method: | T/T |
| Supply Capacity: | 3 sets per month |
Description:
Suitable for three single twister and cable machine, line to center height of 1 M plus or minus 20% can be adjusted(special height made to order).

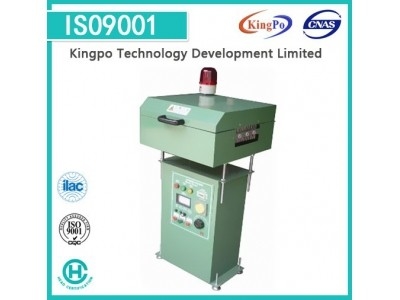

This abet50AC series power frequency spark tester used for detection of all kinds of electric wire electric cable bare copper, broken skin, pinhole, etc insulation fault point.
Test voltage:0-15KV
Test speed:100-360m/min
Test cable number: within 3
Test singal conduction diameter:ø0.1-ø5.0mm
Electrode:200mm*300mm
Power supply:AC220V
Test twisted conduction diameter:30.0
1. comply with the requirements of GB/3048.9-94. JB472810,VD0281,EN50356,BS5099,CCC and so on standards. Detection sensitivity<600UA.
2. Meet the requiremetns of UL1581-1990.
3. this instrument adopt oil-immersed or epoxy resin casting ignition coil, product can be detected with water, and a self-test device can detect weather the instrument is working properly(breakdown, counting, sound and light alarm).(Power supply 220V)
note: UL or new GB standards instrument please special statement.
|
|
