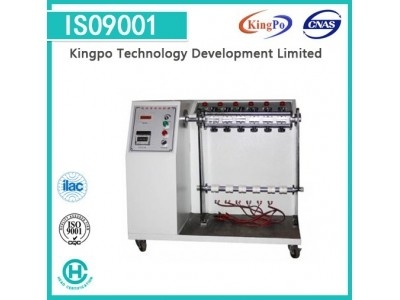

Electric Drive Cable Bending Tester For Cable Bending / Swinging / Loading Test
Product Details:
Place of Origin: | China |
Brand Name: | Kingpo |
Certification: | Calibration Certificate |
Model Number: | GX-4020-A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | To be quoted |
Packaging Details: | safety carton pack or plywood box |
Delivery Time: | 25 working days |
Payment Terms: | T/T |
Supply Ability: | 3 sets per month |
Detail Information |
|||
Function: | Test Bending Resistance Of Cable And Wires | Volume: | 91×55×99cm |
---|---|---|---|
Test Standard: | UL, IEC, VDC | Swing Angle: | 10~180° Continuous And Adjustable |
Fixture: | 6 Groups | Counter: | 6 Digitals |
Highlight: | Flexing Test Apparatus,High Frequency Spark Tester |
Product Description
Cable Testing Equipment For Cable Bending / Swinging / Loading Test
Quick Details:
Alternative name | Cable bending tester |
Function | Test bending resistance of cable and wires |
Feature | Electric drive |
Weight | 87kg |
Volume | 91×55×99cm |
Test standard | UL, IEC, VDC |
Equipment Description:
The cable bending tester is used for testing bending resistance of outgoing line of power plug and wires.
Fix the wires by fixture and add specific load.
During test, the fixture will swing side to side. Under certain times, check disconnection rate. Or check the swinging times when it fails to electricity or loading.
The tester can be auto counting and auto stop.
Technical Parameters:
Model | GX-4020-A |
Fixture | 6 groups |
Swing angle | 10~180° continuous and adjustable |
Counter | 6 digitals |
Load weight | 50,100(113),200,300(284),500g |
Functions | Load or non-load optional |
Load range | AC0~30A or DC0~5A (adjustable independently among 6 groups) |
Volume of tester | 86x51x81cm |
Volume of loading box | 85X40X35 cm |
