ECM Electric Motor Testing System , Low Noise DC Brushless Motor Test Bench

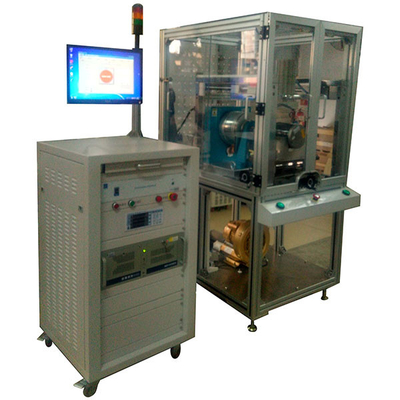

Name:ECM Brushless DC Motor Test Bench


Product introduction:

CMT-1040ECM-HA is a set of AC brushless DC motor designed for long-term AC motor production line test, the test process can automatically collect data, test data can be automatically stored, and can meet the automatic test, fixed-point test, manual test, Rated temperature rise, overload test, and print out reports. The entire test system is measured by a third-party authority and has a CNAS calibration certificate.



1. The equipment used (signal line) requires anti-interference or shielded wire, the equipment is well grounded, safe and reliable, equipped with grating protection, the test bench is equipped with an emergency stop button, the motor still has to follow the specified Termination of test after power sequence and completion of discharge process

2. The motor test bench has internal protection function and will not damage the test bench due to the damage of the motor. For example, when the motor windings are short-circuited, the test will not damage the test table.

3. All test items can be set shielding items, can be selected on the test bench

4. The system can test the performance parameters of the following motors

5. The load size can be adjusted linearly, and it can be tested in two ways: fixed speed or constant torque.

6. No-load and load can be converted, the test specification is set by the industrial computer LABVIEW program, and automatically determine, sound and light alarm, data storage and network output


Selection reference

Customer can refer to the following dynamometer controller model according to own needs for system selection. The software and structure can be tailored to the customer's actual application.

Controller model Sampling speed Available Communication Protocol Communication Method Providing Test Software Features
HDC-1010 5-10PCS/S Yes RS-232 no

Simple operation, low price, suitable for ordinary production lines


HDC-1010-S 5-10PCS/S Yes RS-232 Yes
HDC-1020 20PCS/S no USB2.0 Yes

Fast collection speed and wide test range, suitable for common production lines and common experiments


HDC-1030 25PCS/S no USB2.0 Yes
HDC-1040 100PCS/S no GPIB/RS232 Yes Fast acquisition speed, wide test range and strong anti-interference performance, suitable for production lines and laboratories with high requirements
HDC-2010 100PCS/S no GPIB/RS232 Yes



Software introduction

ECM Electric Motor Testing System , Low Noise DC Brushless Motor Test Bench 0



No. Component Model Technical requirements
1 Industrial control computer IPC-610 Chassis; IPC-610; Motherboard: AIMB-781QG2; CPU: I5-24003.1G; Memory 4G; Philips 190V LCD Monitor. Windows 7 genuine system;
2 Program-controlled variable frequency power supply AFC-31020C Equipment control power supply: single phase 1PHASE / 220VAC / 50HZ input; software can set voltage and frequency, sine wave 50, 60HZ, harmonic distortion rate of less than 5%; load power input protection: short circuit protection, overload protection.
3 Electrical parameter tester WT310E Communication port is IEEE-488; Current transformer 50A adopts Yokogawa original; External input (optional): 2.5/5/10V or 50/100/200 mV; Frequency range DC, 0.5Hz to 100kHz
4 Dynamometer BHD-144 Torque 0.8 ~ 14N.m, precision ± 0.5% FS; speed 100 ~ 12000rpm, accuracy ± 0.1% FS. Continuous operation of rated power 3000W; 3500W running for 5min. With correction balance bar, weight
5 Load controller HDC-1040 It adopts the US imported data acquisition chip and the latest DSP digital signal processing technology to cooperate with the dynamometer, communicates through the GPIB interface, has fast transmission speed and good stability, and acquires 120 torque and speed points per second.
6 Cabinet customized L600*W600*H1015 cabinet and alarm accessories, with floor casters and locking.
7 testing platform customized With safety device
8 Clamp HDJ-200 Make sure to adjust up and down and lock function.
9 testing software customized Chinese interface; with parameter setting and over-limit alarm function, fixed speed load test, start-up time test, no-load test.
10 Tachometer RM1501 Automatic shift, range from 10.0 to 99999 RPM, measurement distance 50 to 300mm, non-contact speed measurement, RS-232 communication.
