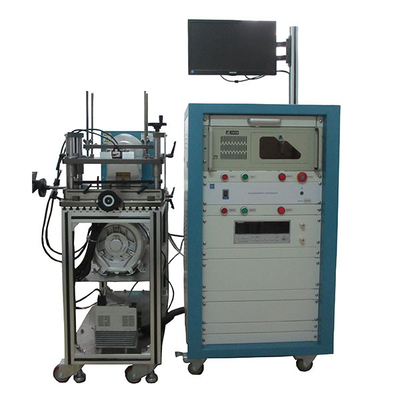

Servo Motor Load Test Equipment / Loading Test System L600*W600*H1015 Cabinet

large.img.alt
small.img.alt

Large Image :  Servo Motor Load Test Equipment / Loading Test System L600*W600*H1015 Cabinet

Product Details:
Place of Origin: China
Brand Name: KingPo
Certification: Calibration certificate
Model Number: CMT-1030SM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: satety plastic tool box or plywood package
Payment Terms: T/T
Supply Ability: 20 per month
Detailed Product Description
General Parameter Measurement: Electrical, Mechanical Parameters,motor Efficiency, Temperature. Test 1: Load Characteristics And Endurance Tests
Diagram: T-N Curve And Five-axis Diagram Test 2: No-load And Lock Rotor Test
Test 3: Driver Voltage Current And Efficiency Test Test 4: Drive Dynamic Response Test And Analog Load Characteristic Test
Signal Converter: Connect Three Dynamometers And Manually Select The Dynamometer To Be Used Motor Fixture: Can Be Adjusted Up And Down
Loading: Manual,automatic Report: Default Or Customized Template
High Light:

electric motor test bench

,

electric motor testing equipment



Name: Servo motor loading test system

Model Number: CMT-1030SM

Product introduction:

CMT-1030SM servo motor loading test system mainly uses hysteresis dynamometer to detect servo motor and stepper motor T-N curve and maximum stall point. The speed of the motor is controlled by the motor driver, and the locked-rotor torque is measured at different speeds of the motor through hysteresis dynamometer loading, and the PN curve is plotted. The load can be adjusted at a high speed to achieve continuous load change loading. Actual test conditions change.



General parameter measurement

1. Electrical parameters: motor operating voltage, current, power factor, input power, resistance;

2. Mechanical parameters: motor running speed, torque, mechanical power;

3. Other parameters: motor efficiency, temperature.

• Load characteristics and endurance tests

• T-N curve and five-axis diagram

• No-load and Lock rotor test

• Driver voltage current and efficiency test

• Drive dynamic response test and analog load characteristic test



Selection reference

Controller model Sampling speed Available Communication Protocol Communication Method Providing Test Software Features
HDC-1010 5-10PCS/S Yes RS-232 no

Simple operation, low price, suitable for ordinary production lines



HDC-1010-S 5-10PCS/S Yes RS-232 Yes
HDC-1020 20PCS/S no USB2.0 Yes

Fast collection speed and wide test range, suitable for common production lines and common experiments



HDC-1030 25PCS/S no USB2.0 Yes
HDC-1040 100PCS/S no GPIB/RS232 Yes Fast acquisition speed, wide test range and strong anti-interference performance, suitable for production lines and laboratories with high requirements
HDC-2010 100PCS/S no GPIB/RS232 Yes



Software introduction

TN curve test setting interface

Servo Motor Load Test Equipment / Loading Test System L600*W600*H1015 Cabinet 0



Configuration

No. Component Technical requirements
1 Dynamometer controller HDC-1030 controller adopts RS-232 communication and high communication speed.
2 Industrial Control Computer with 19" Monitor Inter CPU; 4G or above running memory; 500G or above hard disk ASUS motherboard.
3 Electrical parameter tester Single-phase AC/DC parameters instrument, maximum detection voltage 600V, voltage 50A
4 Dynamometer Natural cooling; torque 1.2KG ~ 6Kg.cm, torque accuracy ± 0.5% FS full scale; speed 10 ~ 3600rpm, speed accuracy ± 0.2% FS full scale. Short-term (in 5 minutes) operating power of 1400W, long-time operating power of 300W.
5 Dynamometer Natural cooling; Torque 0.6 ~ 3Kg.cm, torque accuracy ± 0.5% FS full scale; speed 10 ~ 3600rpm, speed accuracy ± 0.2% FS full scale. Short-term (in 5 minutes) operating power of 1400W, long-time operating power of 300W.
6 Dynamometer

Natural cooling; torque 100g ~ 500g.cm, torque accuracy ± 0.5% FS full scale; speed 100 ~ 25000rpm, speed accuracy ± 0.2% FS full scale.

Short-term (in 5 minutes) operating power of 1400W, long-time operating power of 300W.

7 Cabinet L600*W600*H1015
8 Signal converter Connect three dynamometers and manually select the dynamometer to be used. The system will automatically convert all signals.
9 Motor fixture Can be adjusted up and down
10 Motor Test System Chinese interface; with manual loading, automatic loading, fixed-point torque testing, full-scale testing and other functions, can output and save data reports and curve report functions. If you need to customize the report form, please provide the corresponding template. If not provided, export the report according to our default template.
