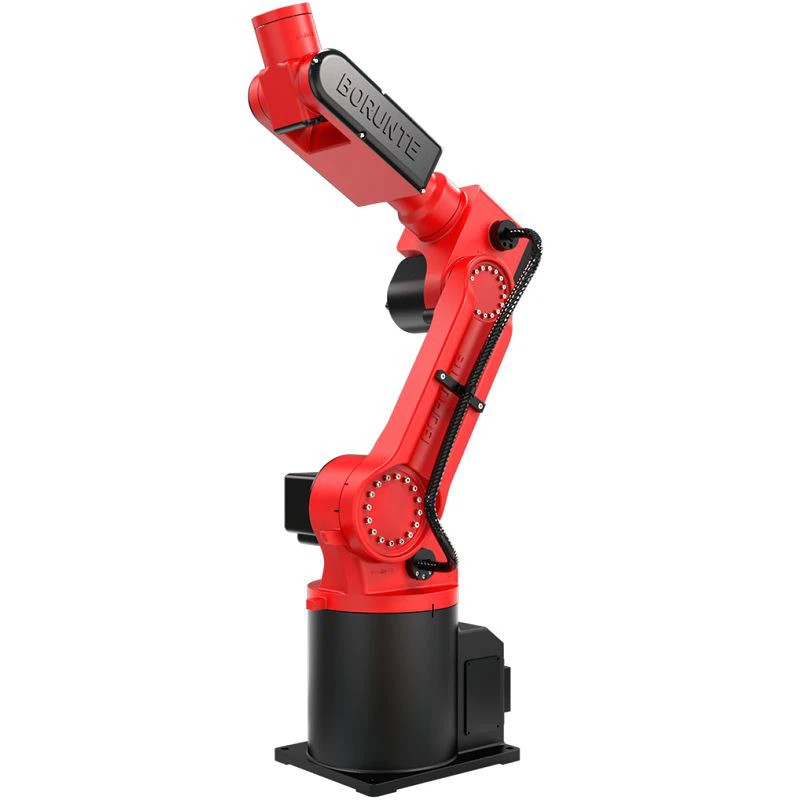

BRTIRUS3030A 6 Aixs Robot 3000mm Arm Length 30KG Max Loading
Product details
BRTIRUS3030A type robot is a six-axis robot developed by BORUNTE, the robot has a compact shape and structure, each joint is installed with a high precision reducer, high speed joint speed can be flexible operation, can carry out handling, palletizing, assembly, injection molding and other operations, has a flexible installation mode. The protection grade reaches IP54 at the wrist and IP50 at the body.Dust-proof and water-proof. The repeat positioning accuracy is ±0.07mm.
Main Specification
Arm Length(mm):3000
Repeatability(mm):±0.07
Loading Ability(KG):30
Power Source(KVA):17.6
Net Weight(KG):860
| Item | Range | Max.Speed | |
| Arm | J1 | ±160° | 89°/s |
| J2 | -105°/+60° | 85°/s | |
| J3 | -80°/+120° | 88°/s | |
| Wrist | J4 | ±180° | 245°/s |
| J5 | ±120° | 270°/s | |
| J6 | ±360° | 337°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
|
|
