Six Axis Stamping Robot 10KG Loading BRTIRUS1510A
Product Details:
| Brand Name: | KINGPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Arm Length(mm): | 1500 | Repeatability(mm): | ±0.05 |
|---|---|---|---|
| Loading Ability(KG): | 10 | Power Source(KVA): | 5.7 |
| Net Weight(KG): | 130 | ||
| High Light: | Six Axis Stamping Robot,10KG Loading Stamping Robot,Stamping 6 Axis Robot |
||
Product Description

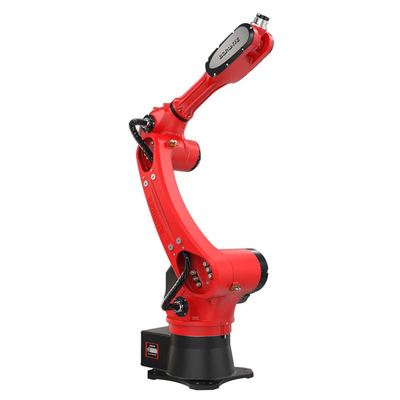

Six-Axis Stamping Robot
Product details
BRTIRUS1510A is a six-axis robot developed by BORUNTE ROBOT Co.,Ltd. for complex applications with multiple degrees of freedom. The maximum load is 10KG, the maximum arm length is 1500mm. Lightweight arm design, compact and simple mechanical structure, in the state of high speed movement, can be carried out in a small workspace flexible work, meet the needs of flexible production. It has six degrees of flexibility. Suitable for painting, welding, molding, stamping, forging, handling, loading, assembling, etc. It adopts HC control system. It is suitable for injection molding machine range from 200T-600T. The protection grade reaches IP54 at the wrist and IP50 at the body. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification
Arm Length(mm): 1500
Repeatability(mm): ±0.05
Loading Ability(KG): 10
Power Source(KVA): 5.7
Net Weight(KG): 130
| Item | Range | Max.Speed | |
| Arm | J1 | ±165° | 163°/s |
| J2 | -95°/+70° | 148°/s | |
| J3 | -85°/+75° | 223°/S | |
| Wrist | J4 | ±180° | 250°/s |
| J5 | ±115° | 270°/s | |
| J6 | ±360° | 337°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
