BRTIRBR2260A 6 Aixs Robot 2202.5mm Arm Length 60KG Max Loading
Product details

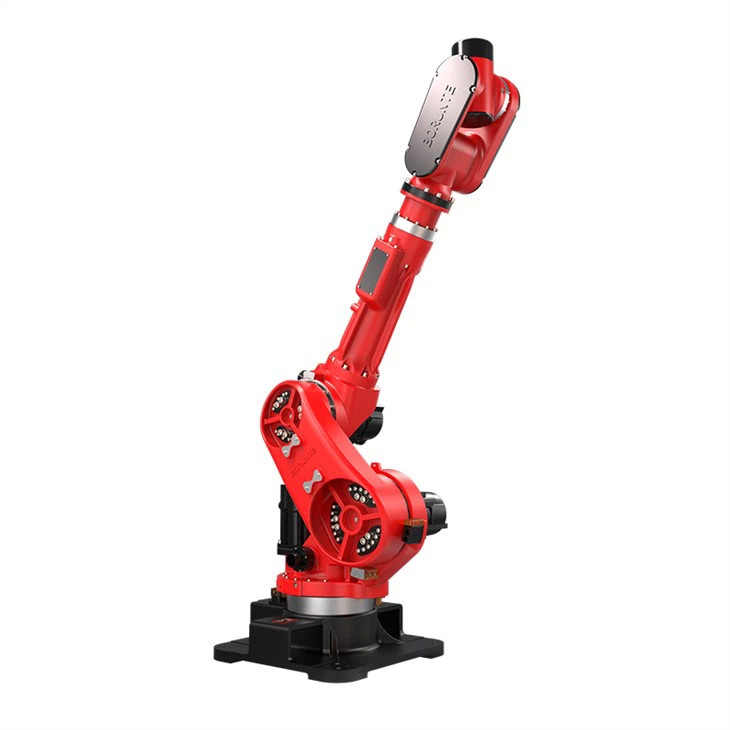

BRTIRBR2260A type robot is a six-axis robot developed by BORUNTE. It has a maximum load of 60KG and a arm span of 2202.5mm. The shape of the robot is compact, and each joint is equipped with a high-precision reducer. The high-speed joint speed can flexibly carry out sheet metal handling and sheet metal bending. The protection grade reaches IP54 at the wrist and IP50 at the body.Dust-proof and water-proof. The repeat positioning accuracy is ±0.1mm.
Main Specification
Arm Length(mm):2202.5
Repeatability(mm):±0.1
Loading Ability(KG):60
Power Source(KVA):18.5
Net Weight(KG):750
| Item | Range | Max.Speed | |
| Arm | J1 | ±160° | 118°/s |
| J2 | -110°/+55° | 84°/s | |
| J3 | -60°/+195° | 108°/s | |
| Wrist | J4 | ±180° | 204°/s |
| J5 | ±125° | 170°/s | |
| J6 | ±360° | 192°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
|
|
