BRTIRUS2520B Six-Axis Robot 2570mm Arm Range 200KG Max Loading
Product details

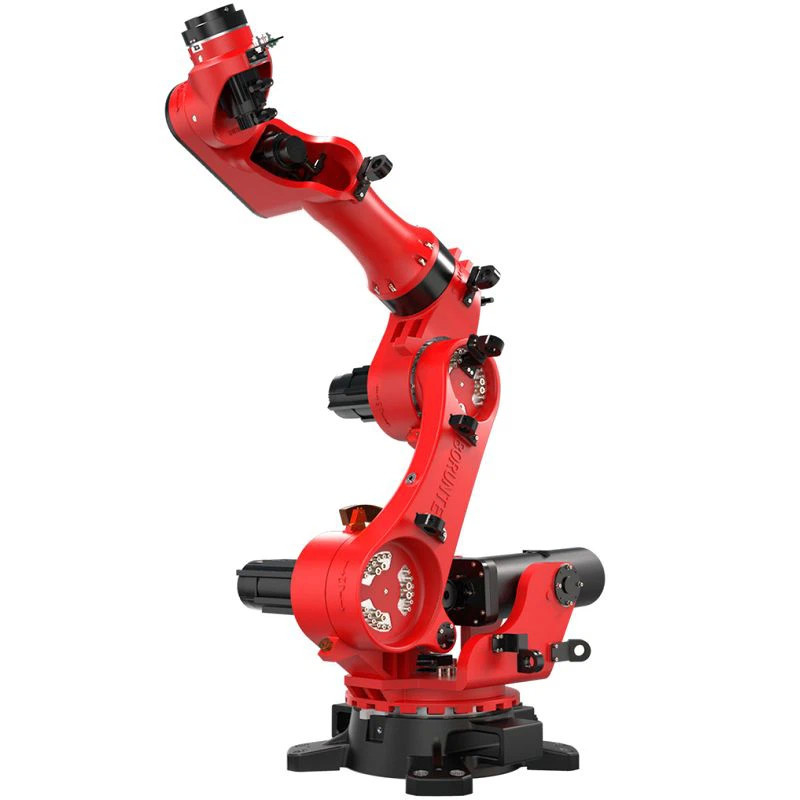

BRTIRUS2520B type robot is a six-axis robot that developed by BORUNTE ROBOT CO,. LTD for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 2570mm. The maximum load is 200KG. It's flexible with multiple degrees of freedom. Suitable for loading and unloading, handling, stacking etc. The protection grade reaches IP50. Dust-proof. The repeat positioning accuracy is ±0.2mm.
Main Specification
Arm Length(mm): 2570
Repeatability(mm): ±0.2
Loading Ability(KG): 200
Power Source(KVA): 28.7
Net Weight(KG): 1320
| Item | Range | Max.Speed | |
| Arm | J1 | ±160° | 57°/S |
| J2 | -85°/+35° | 52°/S | |
| J3 | -80°/+105° | 52°/S | |
| Wrist | J4 | ±180° | 70°/S |
| J5 | ±95° | 75°/S | |
| J6 | ±360° | 99°/S | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
|
|
