Dustproof 6 Axis Robot 2550mm Arm Length 50kg Max Loading BRTIRUS2550A
Product Details:
| Brand Name: | KINGPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Arm Length(mm): | 2550 | Repeatability(mm): | ±0.1 |
|---|---|---|---|
| Loading Ability(KG): | 50 | Power Source(KVA): | 15.6 |
| Net Weight(KG): | 725 | ||
| High Light: | 6 Axis Robot Dustproof,2550mm Arm Six Axis Robot,50kg Loading 6 Axis Robot |
||
Product Description
BRTIRUS2550A 6 aixs robot 2550mm arm length 50KG max loading
Product details

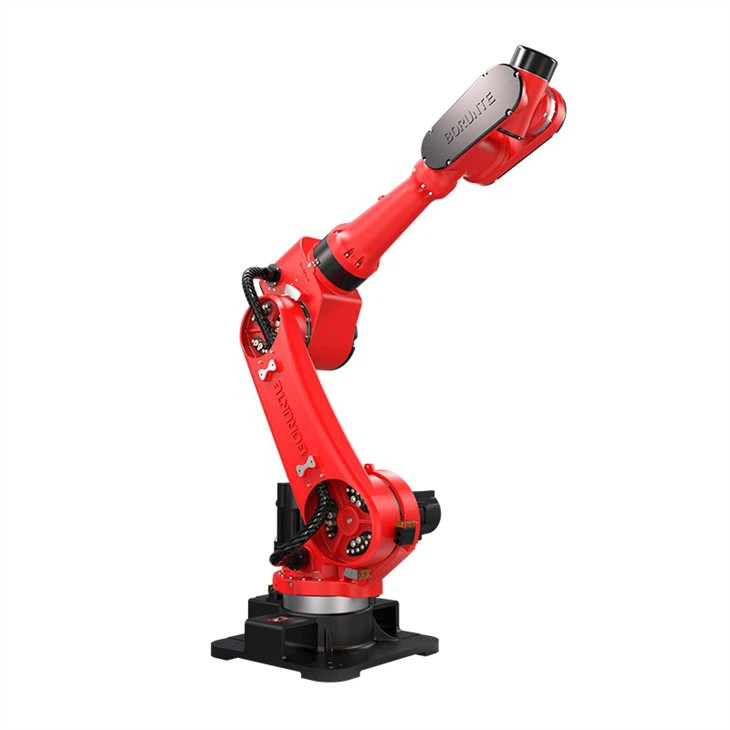

BRTIRUS2550A type robot is a six-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 2550mm. The maximum load is 50KG.It has six degrees of flexibility. Suitable for loading and unloading, assembling, molding,stacking etc. The protection grade reaches IP54 at the wrist and IP50 at the body.Dust-proof and water-proof. The repeat positioning accuracy is ±0.1mm.
Main Specification
Arm Length(mm):2550
Repeatability(mm):±0.1
Loading Ability(KG):50
Power Source(KVA):15.6
Net Weight(KG):725
| Item | Range | Max.Speed | |
| Arm | J1 | ±160° | 84°/S |
| J2 | ±70° | 52°/S | |
| J3 | -75°/+115° | 52°/S | |
| Wrist | J4 | ±180° | 145°/S |
| J5 | ±125° | 223°/S | |
| J6 | ±360° | 223°/S | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
