| MOQ: | 1 |
6 Axis Assembly Robot
Product details

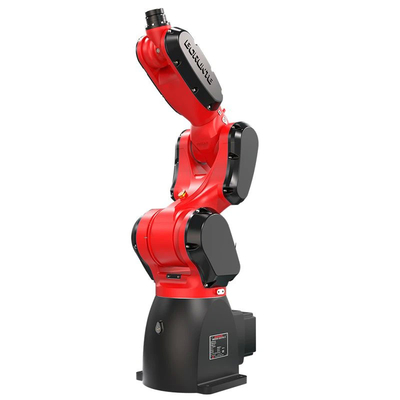

BRTIRUS0707A type robot is a six-axis robot that developed by BORUNTE ROBOT CO,. LTD for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 700mm. The maximum load is 7KG. It's flexible with multiple degrees of freedom. Suitable for polishing, assembling, painting, etc. The protection grade reaches IP65. Dust-proof and water-proof. The repeat positioning accuracy is ±0.03mm.
Main Specification
Arm Length(mm): 700
Repeatability(mm): ±0.03
Loading Ability(KG): 7
Power Source(KVA): 3
Net Weight(KG): 55
| Item | Range | Max.Speed | |
| Arm | J1 | ±174° | 220.8°/s |
| J2 | -125°/+85° | 270°/s | |
| J3 | -60°/+175° | 375°/s | |
| Wrist | J4 | ±180° | 308°/s |
| J5 | ±120° | 300°/s | |
| J6 | ±360° | 342°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
|
|
