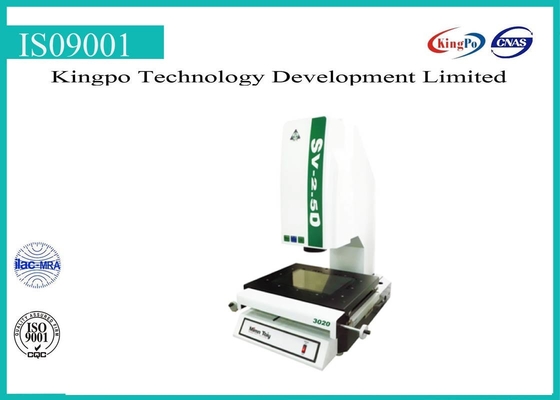

Auto-Gantry Image Measuring Machine Manual Z Axis Auto Focus

large.img.alt
small.img.alt

Large Image :  Auto-Gantry Image Measuring Machine Manual Z Axis Auto Focus

Product Details:
Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate
Model Number: SV-2.5D-3020 / SV-2.5D-4030
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Detailed Product Description
(X,Y,Z)Measuring Travel (mm): 300*200*200 / 400*300*200 Demo-parts Weight: 30kgs
Z Axis Trip: 200mm Operation: X,Y Axis Manual Z Axis Auto Focus
Kind Of Drive: Ball Screw&linear Rail Linear Accuracy: 3+L/200μm(temperature 20℃±1) Relative Humidity:55-65%
High Light:

coordinate measuring machine

,

metallographic machine

Small Travel Series(semi automatic) Image Measuring Machine



Technical Parameters

Specification SV-2.5D-3020 SV-2.5D-4030
(X,Y,Z)Measuring travel (mm) 300*200*200 400*300*200
Demo-parts weight

30kgs



30kgs
Z axis trip 200mm
Operation X,Y axis manual Z axis auto focus
Base material Precision Granite
Body material X,Y Precision Granite
Kind of drive Ball screw&linear rail
Linear accuracy 3+L/200μm(temperature 20℃±1) relative humidity:55-65%
Repeat accuracy <3μm
Linear scales Europe and United imported linear scales1μm(optionally equipped with: 0.5μm/ 0.1μm)
Imaging system Europe and United high resolution color system
Light source High brightness
Light source system Automatic control (16 area table light/contour/coaxial light)
Optical lens Automatic change lens
Optical power 30X~180X
Software AQ-3000 measurement software
Hardware PC+LCD color monitor
Appearance(W*D*H) 785*860*1040 880*1010*1040
Machine weight(kgs) 210 230
Power AC110V~AC220V single phase 50/60Hz
Option/software

0.5X~10X work object Rocker Coaxial optical components

Automatic rotating shaft Instrument rotary table

Hardware PC+LCD Color Monitor
