Coordinate-measuring machine , Max 3D Speed 520mm/s

large.img.alt
small.img.alt

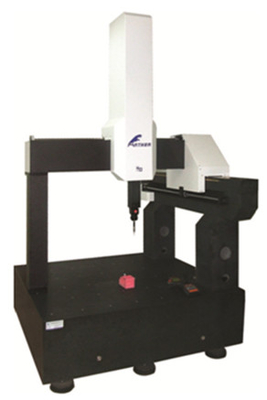

Large Image :  Coordinate-measuring machine , Max 3D Speed 520mm/s

Product Details:
Place of Origin: China
Brand Name: KingPo
Certification: Calibration Certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: safety carton pack or plywood box
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Detailed Product Description
MPEe: ≤ 1.9+3L/1000 μm MPEp: ≤ 1.9 μm
Scale Resolution: 0.1um Max 3D Speed: 520mm/s
Max 3D Acceleration: 1200mm/s² Electrical: 50/60 Hz
High Light:

coordinate measuring machine

,

metallographic machine

Automatic 3D Coordinate Measuring Machine



Description:

“Revolution” is characterized by the highest precision machine. Each part is selected strictly in the period of manufacturing and make sure that all parts are connected perfectly and opportunely in the period of assembly. The acceptance of measuring machines takes place according to ISO 10360-2. In doing so, two standardized acceptance procedures are used. All measuring machines are measured with an ultra precision laser. Afterwards, a test conforming to standards with DKD-certified solid measures such as gauge blocks, ball plates, etc. is conducted. Therefore, the machine customers use at last is real high quality,high precision and Taiwan Technology.



TECHNICAL PARAMETERS :

Model:

WH-565D-CNC

Measuring range X=500mm,Y=600mm,Z=500mm,

Dimension1250 x 1580 x 2580 mm

Work table loading 1500Kg

machine weight 1000Kg



WH-686D-CNC

Measuring range X=600mm,Y=800mm,Z=600mm,

Dimension 1335X1680X 2680 mm

Work table loading 1500Kg

machine weight 2100Kg



WH-8106D-CNC

Measuring range X=800mm,Y=1000mm,Z=600mm

Dimension 1535 x 1780 x 2680 mm

Work table loading 1500Kg

machine weight 2100Kg



WH-10128D-CNC

Measuring range X=1000mm,Y=1200mm,Z=800mm

Dimension 2200x3350x3380 mm

Work table loading 2000Kg

machine weight 5500Kg



WH-10208D-CNC

Measuring range X=1000mm,Y=2000mm,Z=800mm

Dimension 2280X3095X 3080 mm

Work table loading 2000Kg

machine weight 4800Kg



WH-12158D-CNC

Measuring range X=1200mm,Y=1500mm,Z=800mm

Dimension 2300x3000x2700mm

Work table loading 2000Kg

machine weight 4800Kg



MPEe: ≤ 1.9+3L/1000 μm

MPEp: ≤ 1.9 μm

Scale resolution: 0.1um

Max 3D Speed: 520mm/s

3D Acceleration: 1200mm/s²



Advantages

1.Patent double passive vibration damping:

CMM is mostly used in the company and near by the other machines and transport truck. The vibration influences the precision of CMM. Make a special foundation is one solution but this will cost and trouble. Our CMM has the patent support with double passive vibration damping Integrated directly in the machine frame. Thus the machine may be suitably positioned close to production. No need the special foundation for this CMM in most cases.



2.High quality granite worktable:

Worktable is the support of all the CMM, its quality is important for the performance! Our CMM is made with high precision, heavy and stable natural granite worktable from “Mount TAI”; this can support vibration damping and improve the performance of CMM.



3.Enclosed guides in all axes:

The environment of the CMM has strict requirement, but some different such as the temperature and dust are possible in the measurement room. As a standard, all our CNC machines are fitted with enclosed guides. This protects the guide ways from damage, dirt, and direct thermal influences. This can prevent external dust and temperature changes. It’s important for usage in dusty environment.



4.Friction “automatic rectifying” transmission:

Our CMM uses friction transmission, and has the “automatic rectifying” system in all axes. The transmission system using “fixed + micro suspension” structure to ensure transmission is parallel with guide way. That makes the measuring machine largely maintenance-free.



5.Imported key parts:

Key parts are most important for the stable of machine. Only with the best design and best quality of key parts can make the long time stable of CMM. All the key parts are famous brands(servo motor, transmission system, pneumatic system etc.). This can make best precision and service life of the CMM.



6.RENISHAW optical scale:

Optical scale is one of most important part for CMM; RENISHAW is the best flag in the domain of CMM parts. It has the best products and best service reputation! Our CMM use always RENISHAW high accuracy optical scale. Resolution is 0.1 um.



7.Air bearing surround guide way in all 4 sides

Air bearing guide way using 4 sides surrounded structure! This is the symbol of stable and quality! In our CMM, each axis has many air pressure regulators in different directions and pneumatic bearings, annular pneumatic bearing design guaranties instruments steady during moving.



8.Small holes technology

Air consumption: 150L/Min. Patent small holes technology, this makes condensate zone between air bearing and guide way. It can offset the little heat comes from the motion friction! This technology improves the thermal stability of the CMM and keeps the long term precision stability.



Environment Specifications

●Room Required Specifications

-Average Room Temperature: 18 - 22°C

-Maximum Thermal Gradients: 2 °C/day, 1°C/hour, 1°C/meter surrounding the machine.

-Humidity: 40% to 70%

● Air Supply System

-Min. Air Pressure: 5.5bar(0.55MPa)

-Air Consumption: 250NL/min

● Electrical Requirements

-Voltage: 220V ± 10%

-Frequency: 50/60 Hz

-Current: 15 A

-Power: < 1100W

-Earth resistance: < 4Ω



SOFTWARE

Coordinate-measuring machine , Max 3D Speed 520mm/s 0

Coordinate-measuring machine , Max 3D Speed 520mm/s 1



CONTROLLER SYSTEM



The UCC T5 from RENISHAW, Controller with integrated servo rack, controller platform and CPU consists of three electric circuits. It’s easy to repair. If you have trouble with it, you can change the related electric circuit according to the error information without troubled checking wiring and spending much time in searching cause. Spare parts are universal, which can do the best to decrease stock and cost for customers. The controller gains CE certification (Europe) and UL certification (USA).

Coordinate-measuring machine , Max 3D Speed 520mm/s 2



Technical Parameters:



●Single CPU processor,32 bit processor. True real-time control.

●19’ rack,weight 19kg

● Direct connection to 220V, 50/60HZ, single-phase, connected load 1300Watt

● Complies with EN50082, EN50081 regulations

●Temperature range- operation: 10℃ to 45℃

●Relative air humidity: 10% to 95% non-condensing

●Performance: max. Positioning speed with 1µm resolution

●Look ahead, acceleration profile S-profile

●Incremental RS422, 1/T Sub-count Interpolation

● Counter frequency to max. 10MHz

● Connection facilities for incremental transducer (5V-TTL)

●LED to show all important elements’ operating status on the platform



Joystick MCUlite-2



Joystick MCU-LITE with 18 control keys and speed control system. Multi-functional and comprehensive CMM operation unit.

Coordinate-measuring machine , Max 3D Speed 520mm/s 3



PROBE SYSTEM

Probe system consists of three parts :probe heads,probe,stylus.

●Probe head :PH20MT motorized probe heads by RENISHAW

PH20MT motorized probe heads by RENISHAW:This system enables fast,complete and repeatable measuring of more complex work-pieces. Thanks to the rotation possibility the machine becomes a 5-way measuring machine and enables significant measuring time saving especially with simple pieces.

● Probe :TP20 SF module.

● Test needle: M2 needle component



CALIBRATION BALL

Calibration ball Ø19, directly, with thread M10. The spherical reference gauge can be probed from all six

semi-axes. A protection cover is supplied to prevent possible damage.

*  Sphere diameter: 19 mm *  Roundness: ≤0.1 um



COMPUTER SYSTEM

● CPU: Intel processor

● Memory:4G

● Hard Disk Drive:500GB

● Graphic card:1G

● Mouse,keyboard:DELL

● Monitor: 23’LCD monitor

● Operating System:Windows

●  Desk one set

Coordinate-measuring machine , Max 3D Speed 520mm/s 4



Coordinate-measuring machine , Max 3D Speed 520mm/s 5
