General Small Pick Up Robot 5KG Loading Flexible 6 Axis
Product Details:
| Brand Name: | KINGPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Arm Length(mm): | 940 | Repeatability(mm): | ±0.05 |
|---|---|---|---|
| Loading Ability(KG): | 5 | Power Source(KVA): | 2.8 |
| Net Weight(KG): | 53 | ||
| High Light: | BRTIRUS0805A Pick Up Robot,940mm Arm Length Pick Up Robot,Six Axis Robot 5KG Loading |
||
Product Description

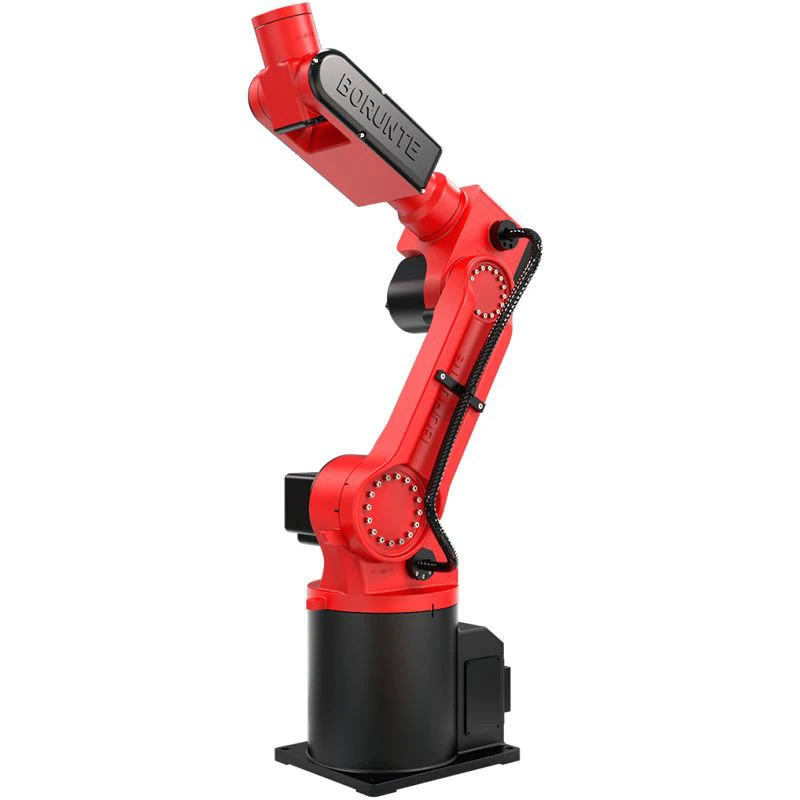

Small Pick Up Robot
Product details
BRTIRUS0805A type robot is a general robot. The whole operation system is simple, compact structure, high position accuracy and has good dynamic performance. The load ability is 5kg, especially suitable for injection molding, taking, stamping, handling, loading and unloading, assembly, etc. It is suitable for injection molding machine range from 30T-250T. The protection grade reaches IP50. Dust-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification
Arm Length(mm): 940
Repeatability(mm): ±0.05
Loading Ability(KG): 5
Power Source(KVA): 2.8
Net Weight(KG): 53
| Item | Range | Max.Speed | |
| Arm | J1 | ±170° | 237°/s |
| J2 | -98°/+80° | 267°/s | |
| J3 | -80°/+95° | 370°/s | |
| Wrist | J4 | ±180° | 337°/s |
| J5 | ±120° | 600°/s | |
| J6 | ±360° | 588°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
