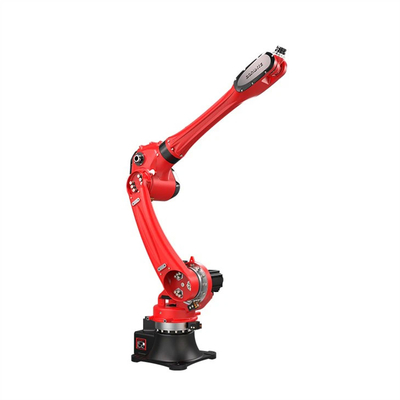

Max 10KG Loading 6 Axis Robot 2100mm Arm Length BRTIRUS2110A
Product Details:
| Brand Name: | KINGPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Arm Length(mm): | 2100 | Repeatability(mm): | ±0.05 |
|---|---|---|---|
| Loading Ability(KG): | 10 | Power Source(KVA): | 6 |
| Net Weight(KG): | 230 | ||
| High Light: | 2100mm Arm Six Axis Robot,10KG Loading Six Axis Robot,BRTIRUS2110A 6 Axis Robot |
||
Product Description
BRTIRUS2110A 6 Aixs Robot 2100mm Arm Length 10KG Max Loading
Product details
BRTIRUS2110A is a six-axis robot developed by BORUNTE for complex applications with multiple degrees of freedom. The maximum arm length is 2100mm. The maximum load is 10KG. It has six degrees of flexibility.Suitable for welding, loading and unloading, assembling etc. The protection grade reaches IP54 at the wrist and IP50 at the body. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification
Arm Length(mm):2100
Repeatability(mm):±0.05
Loading Ability(KG):10
Power Source(KVA):6
Net Weight(KG):230
| Item | Range | Max.Speed | |
| Arm | J1 | ±155° | 110°/S |
| J2 | -140°/+65° | 146°/S | |
| J3 | -75°/+110° | 134°/S | |
| Wrist | J4 | ±180° | 273°/S |
| J5 | ±115° | 300°/S | |
| J6 | ±360° | 336°/S | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
