2200mm Arm Length 6 Axis Robot 6KG Max Loading BRTIRWD2206A
Product Details:
| Brand Name: | KINGPO |
|
Detail Information |
|||
| Arm Length(mm): | 2200 | Repeatability(mm): | ±0.08 |
|---|---|---|---|
| Loading Ability(KG): | 6 | Power Source(KVA): | 6.4 |
| Net Weight(KG): | 250 | ||
| High Light: | 6KG Loading 6 Axis Robot,6KG Loading Six Axis Robot,2200mm Arm 6 Axis Robot |
||
Product Description

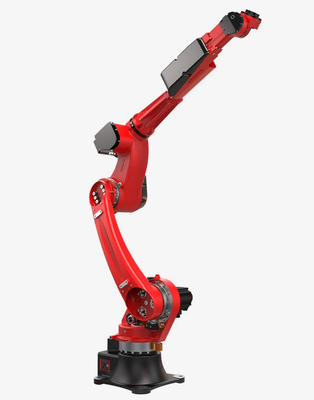

BRTIRWD2206A 6 Aixs Robot 2200mm Arm Length 6KG Max Loading
Product details
BRTIRWD2206A type robot is a four-axis robot developed by BORUNTE for welding application industry. The robot is compact in shape, small in size and light in weight. Its maximum load is 6KG and its arm span is 2200mm. Wrist hollow structure, more convenient line, more flexible action. Each joints is equipped with high-precision reducer, the high-speed joint speed can carry out flexible operations in a narrow space. It can be used in handling, grinding, and assembling and has a flexible mounting methods. The protection grade reaches IP50. Dust-proof. The repeat positioning accuracy is ±0.08mm.
Main Specification
Arm Length(mm):2200
Repeatability(mm):±0.08
Loading Ability(KG):6
Power Source(KVA):6.4
Net Weight(KG):250
| Item | Range | Max.Speed | |
| Arm | J1 | ±155° | 106°/s |
| J2 | -130/+75° | 135°/s | |
| J3 | -75/110° | 128°/s | |
| Wrist | J4 | ±155° | 168°/s |
| J5 | ±130° | 324°/s | |
| J6 | ±360° | 504°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
