BRTIRUS1820A 6 Axis Robot 1850mm Arm Length 20KG Max Loading
Product Details:
| Brand Name: | KINGPO |
|
Detail Information |
|||
| Arm Length(mm): | 1850 | Repeatability(mm): | ±0.05 |
|---|---|---|---|
| Loading Ability(KG): | 20 | Power Source(KVA): | 6.2 |
| Net Weight(KG): | 230 | ||
| High Light: | 1850mm Arm Length 6 Axis Robot,20KG Loading 6 Axis Robot,BRTIRUS1820A 6 Axis Robot |
||
Product Description

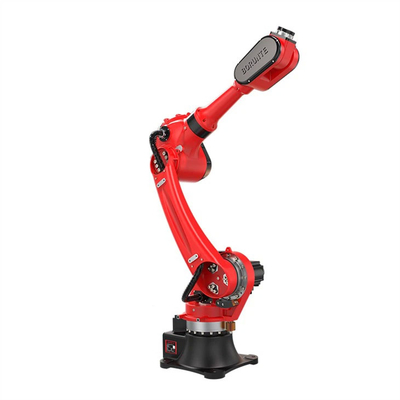

BRTIRUS1820A 6 aixs robot 1850mm arm length 20KG max loading
Product details
BRTIRUS1820A is a six-axis robot developed by BORUNTE for complex applications with multiple degrees of freedom. The maximum load is 20KG, the maximum arm length is 1850mm. Lightweight arm design, compact and simple mechanical structure, in the state of high speed movement, can be carried out in a small workspace flexible work, meet the needs of flexible production. It has six degrees of flexibility.Suitable for loading and unloading, injection machine, die casting, assembling, coating industry, polishing, detection etc.It is suitable for injection molding machine range from 500T-1300T. The protection grade reaches IP54 at the wrist and IP50 at the body.Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification
Arm Length(mm):1850
Repeatability(mm):±0.05
Loading Ability(KG):20
Power Source(KVA):6.2
Net Weight(KG):230
| Item | Range | Max.Speed | |
| Arm | J1 | ±155° | 122°/S |
| J2 | -140°/+65° | 163°/S | |
| J3 | -75°/+110° | 136°/S | |
| Wrist | J4 | ±180° | 273°/S |
| J5 | ±115° | 300°/S | |
| J6 | ±360° | 375°/S | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
