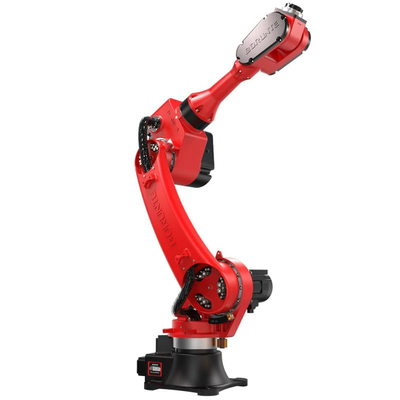

Six Axis Die-Casting Robot
Product details
BRTIRUS2030A is a six-axis robot developed by BORUNTE ROBOT Co.,Ltd for complex applications with multiple degrees of freedom. The maximum load is 30KG and the maximum arm length is 2058mm. The flexibility of six degrees of freedom can be used to handle the scenes such as injection parts taking, machine loading and unloading, assembly and handling. The protection grade reaches IP54 at the wrist and IP50 at the body. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification
Arm Length(mm): 2058
Repeatability(mm): ±0.05
Loading Ability(KG): 30
Power Source(KVA): 10.16
Net Weight(KG): 310
| Item | Range | Max.Speed | |
| Arm | J1 | ±150° | 102°/S |
| J2 | -90°/+70° | 103°/S | |
| J3 | -55°/+105° | 123°/S | |
| Wrist | J4 | ±180° | 245°/S |
| J5 | ±120° | 270°/S | |
| J6 | ±360° | 337°/S | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
|
|
