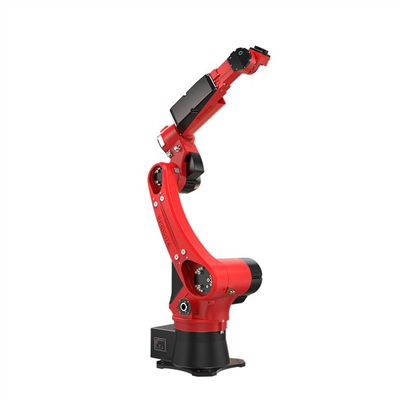

BRTIRWD1606A 6 Aixs Robot 465mm Arm Length 1KG Max Loading
Product details
BRTIRWD1606A type robot is a six-axis robot that developed by BORUNTE for welding application industry.The robot is compact in shape, small in size and light in weight. Its maximum load is 6KG and its arm span is 1600mm.Wrist hollow structure, more convenient line, more flexible action.The first, second and third joints are equipped with high-precision reducers, and the fourth, fifth and sixth joints are equipped with high-precision gear structures, so the high-speed joint speed can carry out flexible operations. The protection grade reaches IP54.Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification
Arm Length(mm):1600
Repeatability(mm):±0.05
Loading Ability(KG):6
Power Source(KVA):6
Net Weight(KG):167
| Item | Range | Max.Speed | |
| Arm | J1 | ±165° | 158°/s |
| J2 | -95°/+70° | 143°/s | |
| J3 | ±82° | 223°/s | |
| Wrist | J4 | ±150° | 342°/s |
| J5 | ±130° | 300°/s | |
| J6 | ±360° | 500°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
|
|
