Detail Information |
|||
| Arm Length(mm): | 1500 | Repeatability(mm): | ±0.05 |
|---|---|---|---|
| Loading Ability(KG): | 10 | Power Source(KVA): | 5.7 |
| Net Weight(KG): | 130 | ||
| High Light: | 6 Axis Robot 1500mm Arm Length,Six Axis Robot 10KG Loading,BRTIRUS1510A 6 Axis Robot |
||
Product Description

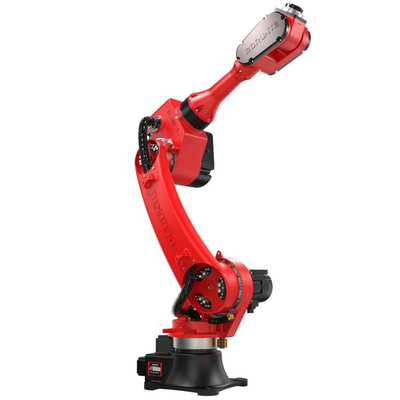

BRTIRUS1510A 6 Axis Robot 1500mm Arm Length 10KG Max Loading
BRTIRUS1510A 6 Aixs Robot 1500mm Arm Length 10KG Max Loading
Product details
BRTIRUS1510A is a six-axis robot developed by BORUNTE for complex applications with multiple degrees of freedom.The maximum load is 10KG, the maximum arm length is 1500mm. Lightweight arm design, compact and simple mechanical structure, in the state of high speed movement, can be carried out in a small workspace flexible work, meet the needs of flexible production. It has six degrees of flexibility.Suitable for painting, welding, molding, stamping, forging, handling, loading, assembling, etc. It adopts HC control system. It is suitable for injection molding machine range from 200T-600T. The protection grade reaches IP54 at the wrist and IP50 at the body.Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
Main Specification
Arm Length(mm):1500
Repeatability(mm):±0.05
Loading Ability(KG):10
Power Source(KVA):5.7
Net Weight(KG):130
| Item | Range | Max.Speed | |
| Arm | J1 | ±165° | 163°/s |
| J2 | -95°/+70° | 148°/s | |
| J3 | -85°/+75° | 223°/S | |
| Wrist | J4 | ±180° | 250°/s |
| J5 | ±115° | 270°/s | |
| J6 | ±360° | 337°/s | |
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
